STB

Video:

•  H.265/HEVC (10-bit)
•  H.264/AVC
•  VP9 (10-bit), VP6/VP8
•  MPEG-1/2/4
•  VC-1/WMV9
•  Real 8/9/10
•  Divx 3/4/5/6

Audio:

•  AAC (HE-AAC v2 Profile)
•  Dolby digital AC-3)
•  MPEG-1/2 (layer I/II)
•  MP3
•  FLAC, Vorbis

Streaming:

•  MPEG-2 transport stream
•  Multicast or Unicast
•  TS over UDP
•  TS over RTP
•  HTTP streaming
•  RTSP (with trick play support) for VoD
•  Teletext and subtitles
•  IGMP v2 & v3
•  HLS

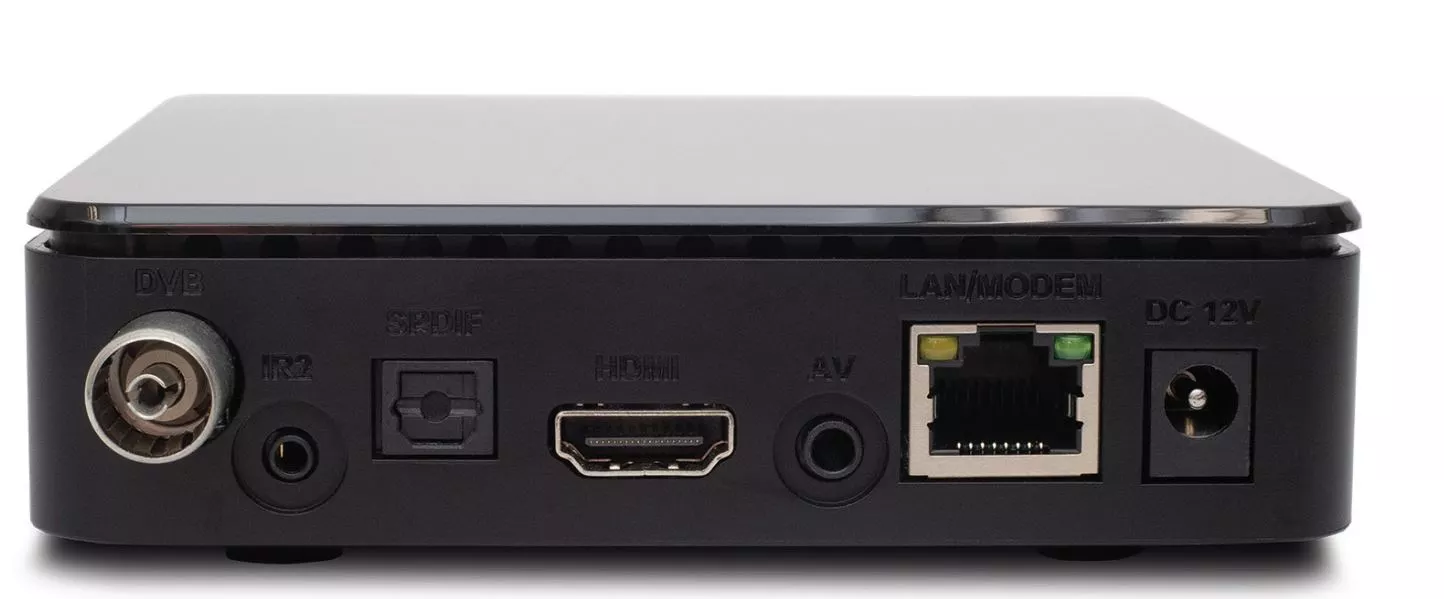

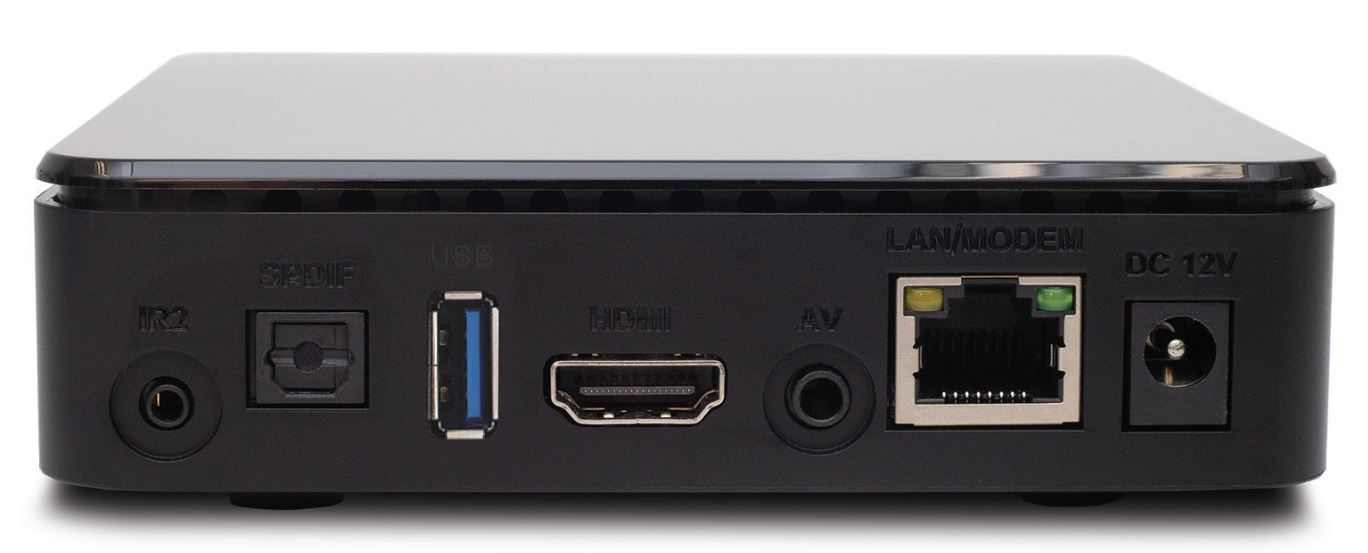

Inputs/Outputs:

•  HDMI 2.0a
•  AV output (CVBS, L+R audio)
•  TOSLINK (S/PDIF optical audio interface)

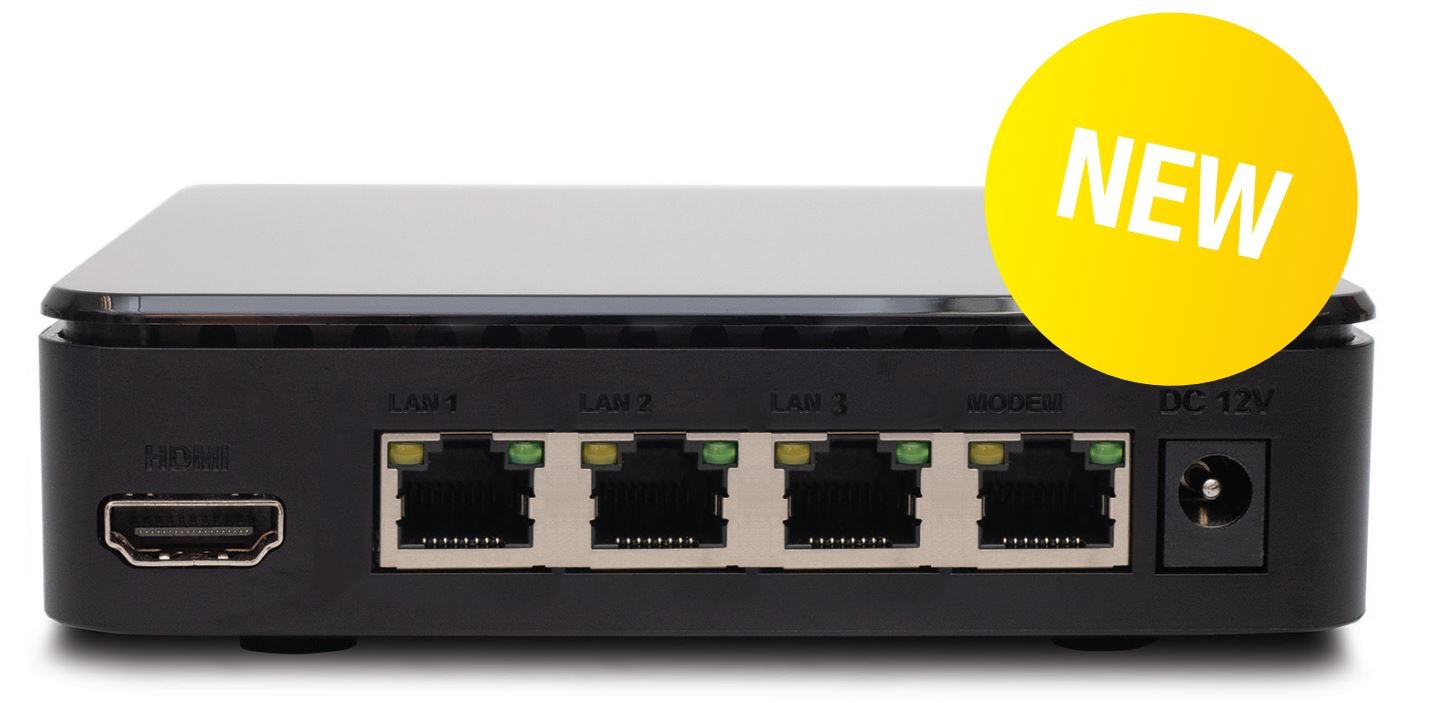

•  1 x RJ45 (Ethernet 10/100 BaseTx)/4 x RJ45 (Nano 3 Giga)

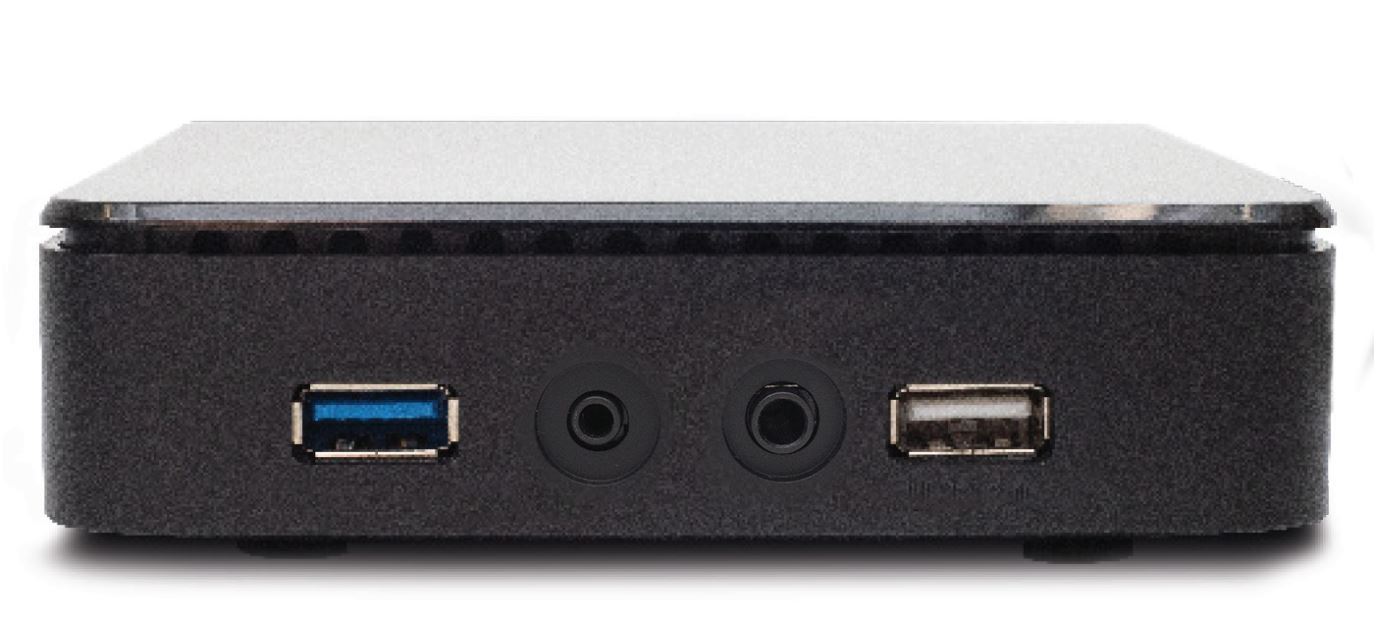

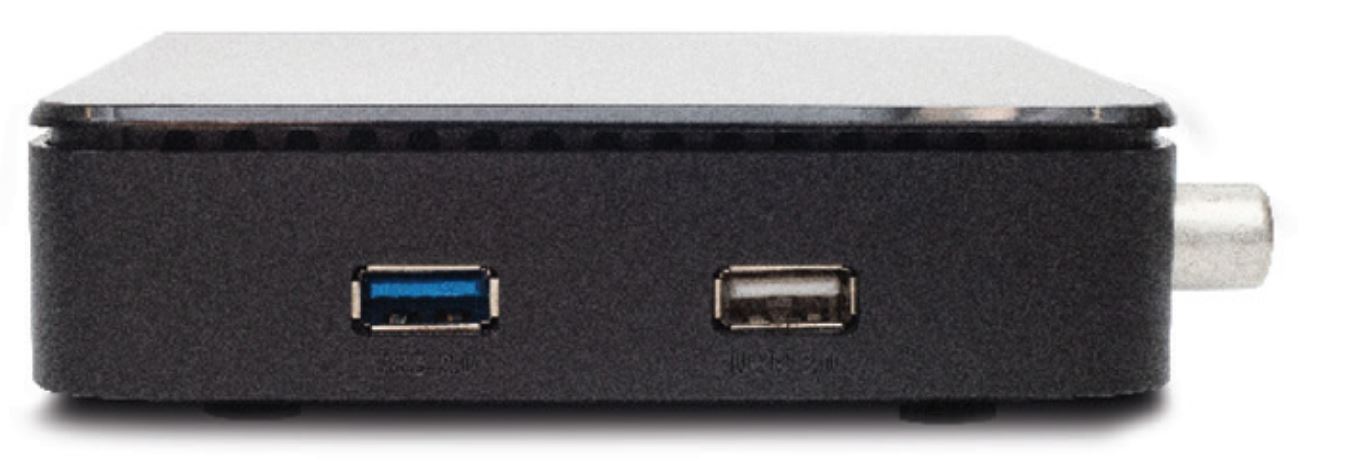

•  1 x USB 3.0 + 1 x USB 2.0

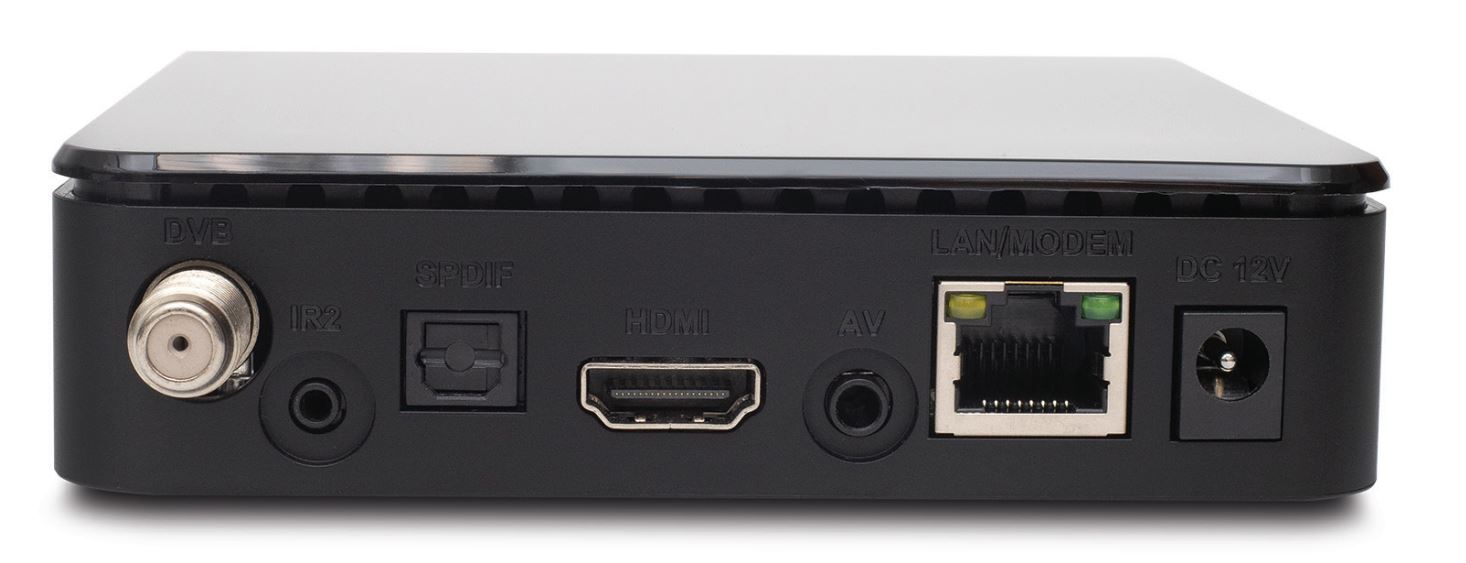

•  CI Slot (Nano 3S)
•  external IR sensor
•  antenna RF input (only on selected models)

Accessories (optional):

•  IR2 Extender cable
•  AV Cable adaptor
•  RCA/SCART cable
•  Ethernet Cable
•  Full size/Compact Keyboard
•  Bluetooth Remote control
•  WiFi Adapter

Technical Specifications:

•  Dimensions 115 mm x 115 mm x 32 mm (without packaging)
•  Power consumption 6W
•  Power Input 12V/1A DC
•  Power Adaptor 90-250V/50-60 Hz AC
•  Operating Temperatures 0°C to 45°C
•  Operating Humidity 8%-95% (non-condensing)

CAS/SCRAMBLING/DRM

•  AntikCrypt
•  Conax
•  Widevine

Software Integration:

•  Operating system Linus 3.18/4.4
•  Copy Protection HDCP 2.2
•  Ekioh SVG integrated

Applications:

•  Telco IPTV
•  Hotel IPTV
•  OTT IPTV
•  DTH
•  Digital Signage

Hardware:

•  CPU: HiSilicon Hi3798MV200 4 x ARM cortex-A53 (15000 DMIPS)
•  GPU: ARM Mali-450
•  DRAM: 1GB DDR4
•  Flash: 8GB eMMC
•  Wi-Fi: 802.11 b/g/n (2.4 GHz, 1T1R, 150M)
•  868 MHz SmartHome gateway (optional)
•  DVB-S/S2/T/T2/C tuner (optional)

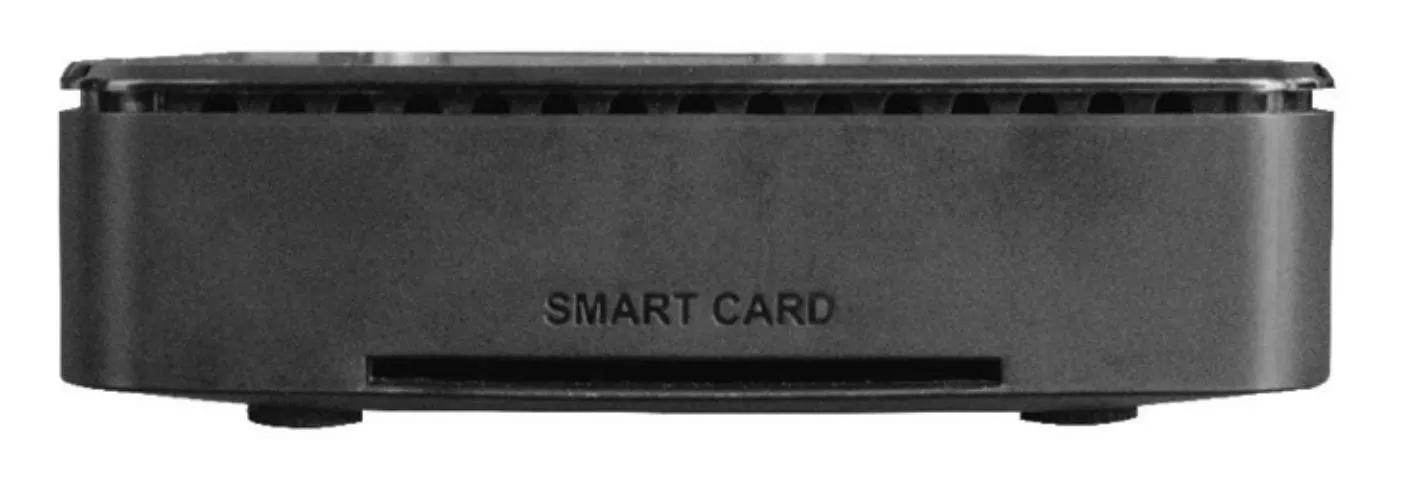

•  CAS Card reader slot (optional)
•  Modem

Middleware:

•  ANTIK MaxIM Middleware 2.0
