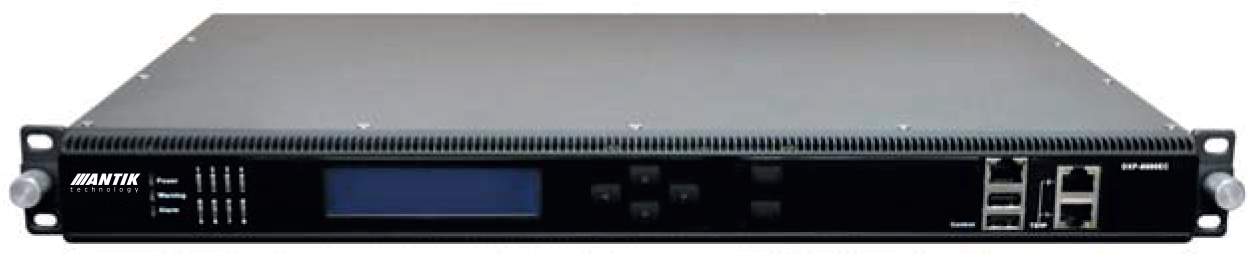

Antik GX 5000 + DVB-S2/C/T2 IRD

ANTIK Technology
Antik Digital Contents Processing Platform GX 5000 brings a compact, powerful and flexible solutions that allow the users to build or update DTV or IPTV headend to meet the requirements of today’s new network architectures. GX 5000 is a compact 1U platform capable of processing a high number of steams. By inserting up to 6 optional functional modules and pluggable MUX/Scrambler extended modules, GX 5000 integrates all DTV headend functions, such as DVB signal reception, descrambling, encoding, transcoding, remultiplexing, scrambling and modulation into one single unit.



KEY FEATURES

  •  Maximum data throughtput 49Gb/s
  •  16 TS processors on the main board, 10Mb/s bandwidth for each TS processor
  •  2SFP BbE IP ports with maximum 920Mbps input and output data rate
  •  Up to 256 MPTS/SPTS TS/IP input and 512 MPTS/SPTS output without IP-FEC
  •  Up to 24 MPTS/SPTS TS/IP input and 24 MPTS/SPTS output with IP-FEC
  •  PSI/SI edition and re-generation, PID re-mapping and filtering
  •  Control and monitoring by Front Panel, Menu, Web and SNMP
  •  Total 6 slots for different digital TV functional modules: modulator, demolator, encoder, trans-coder, decoder, interface adapter, etc.
  •  Removable cooling fan assembly with alarm & speed control
  •  Dual hot-swappable power supplies units
  •  1RU rack with display screen, 6 buttons, RS-232, USB

Typical Application: 8 x DVB-S/S2 Demodulating + 8 x Descrambling + 5 x ASI Inputs/Outputs + 1QAM Modulating

ANTIK Technology



ANTIK Technology



Optional Function Modules:

ANTIK Technology

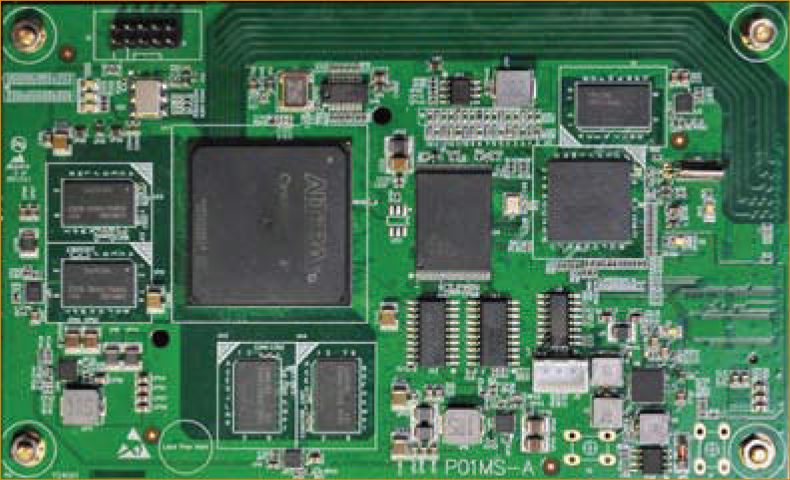

P01MS (reMUX & Scrambler Extension Module)

ANTIK Technology

  •  Compliant with ISO13818 & EN300 468
  •  15 Gbps data processing capability
  •  32 independents TS reMUX´s and Scramblers
  •  PID filtering, remapping, pass through & mapping
  •  Insert & Edit PSI/SI tables
  •  PCR re-stamp & calibrate
  •  Local or remote CAS synchronous simul-crepyt processing
  •  Self-temperature monitoring

D01S2/D02S2 (4 x DVB-S/S2 Demodulator Module)

ANTIK Technology

  •  4 x F type Female, 75Ω
  •  Input Frequency Range: 950 ~ 2150 MHz
  •  Input level: -65 dBm ~ -25 dBm
  •  Symbol Rate: 2 ~ 45 MBaud (DVB-S QPSK), 2-31 MBaud (DVB-S2 8PSK)
  •  Roll Off factor: 0.35 (DVB-S QPSK), 0.35/0.25/0.2 (DVB-S2 8PSK)
  •  FEC Puncture Rate: 2/3, 3/4, 5/6, 6/7, 7/8 (DVB-S QPSK), 2/3, 3/4, 3/5, 5/6, 8/9, 9/10(DVB-S2 8PSK)
  •  LNB Polarity Selection Voltage: 0,13 V, 18 V selectable
  •  LNB Band Selection Tone: 0/22K selectable
  •  DiSEqC 1.0
  •  BISS-1/E Decrypt: Each tuner supports 40 PIDs maximum
  •  ISI: D02S2 Support
  •  ISI ID: 1-255
  •  Support of T2-MI de-encapsulator



D01T2 (4 x DVB-C/T/T2 Demodulator Module)

ANTIK Technology

  •  4 x F type Female, 75Ω
  •  Input Frequency: 48 ~ 860 MHz (DVB-C), 104 ~ 862 MHz (DVB-T/T2)
  •  Input Level: -15~ 15dBm (DVB-C), -70 ~ -20dBm (QEF, DVB-T/T2)
  •  Symbol Rate: 1 ~ 7 MSps(ITU J.83 Annex A DVB-C)
  •  DVB-T2 v 1.3
  •  Constellation: 16/32/64/128/256 QAM (DVB-C), QPSK/16 QAM/64 QAM (DVB-T), QPSK/16 QAM/64 QAM/256 QAM (DVB-T2)
  •  Bandwidth: 6/7/8 MHz
  •  FFT Mode: 2K/8K (DVB-T), 1K/2K/4K/8K/16K/32K (DVB-T2)
  •  Guard Interval: 1/4, 1/8, 1/16, 1/32 (DVB-T) 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128 (DVB-T2)
  •  FEC Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8 (DVB-T) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 (DVB-T2)
  •  Input Return Loss: 7 dB

P01DA (2 x DS3 Input/2 x DS3 Output/1 x ASI Adaptor Module)

ANTIK Technology

  •  5 x BNC Female, 75Ω
  •  Standard: DVB-ASI, EN50083-9 / ITU-T G.703
  •  Frame Structure: ITU-T G.752 / ITU-T G.804
  •  ASI Input or Output can be switched by Web Control
  •  DS3 bit rate: 44.736 Mbps



P01CI (4 x CI De-encryption Module)

ANTIK Technology

  •  4 x Independent Common Interface (DVB-CI) slots
  •  Multiple programs CSA or BISS-1/E De-encryption
  •  Support of CAM watchdog

C01MOD (8-carrier QAM or 2-carrier COFDM Modulator Module)

ANTIK Technology

  •  2 x F type Female, 75Ω(1 x main output,1 x -20dB monitor output)
  •  Support QAM or COFDM Modulation (Can´t work simultaneously)
  •  ITU-T J.83 Annex A, C
  •  2 groups of 4 adjacent channel carriers QAM RF output, 2 un-adjacent channel carriers COFDM RF output
  •  16QAM, 32QAM, 64QAM, 128QAM, 256QAM (QAM)
  •  Modulation Mode: 16/32/64/128/256QAM (QAM), QPSK/16/64QAM (COFDM)
  •  FFT Mode: 2K/8K
  •  RF output range: 48 ~ 996 MHz, step by 1 KHz
  •  Symbol rate: 2.5 ~ 6.99 MBauds
  •  RF total output level: 94 ~ 120 dBuV
  •  MER > 38 dB
  •  Spurious rejection > 55 dB
  •  Output return loss -10 dB



C02MOD (4-carrier Un-Adjacent Frequencies QAM/ATSC/COFDM/DTMB Modulator Module)

ANTIK Technology

  •  2 x F type Female, 75Ω(1 x main output, 1 x -20 dB monitor output)
  •  Support ATSC/QAM (Annex A/B)/COFDM/DTMB Modulation (Can´t work simultaneously)
  •  16QAM, 32QAM, 64QAM, 128QAM, 256QAM (QAM Annex A), 64QAM, 256QAM (QAM Annex B), 8VSB (ATSC), QPSK, 16QAM, 64QAM (COFDM), QPSK, 16QAM, 32QAM, 64QAM, QAM4_NR (DTMB)
  •  ITU-T J.83 Annex A, B
  •  RF output range: 48 ~ 996 MHz, step by 1 KHz
  •  Modulation Mode: 16/32/64/128/256QAM (QAM Annex A), 64/256QAM (QAM Annex B), QPSK/16/64QAM (COFDM), 8VSB (ATSC), QPSK/16/32/64QAM/QAM4_NR (DTMB)
  •  FFT Mode: 2K/4K/8K
  •  Symbol rate: 2.5 ~ 6.99 MBauds
  •  RF total output level: 80 ~ 100 dBuV
  •  MER > 36 dB
  •  Spurious rejection > 55 dB
  •  Output return loss -10 dB
  •  Spurious rejection > 55 dB
  •  Output return loss -10 dB



C01ASI (5 x ASI Input/Output Module)

ANTIK Technology

  •  5 x BNC Type Female, 75Ω
  •  Standard: DVB-ASI, EN50083-9
  •  Input or Output: Switched by Web Control
  •  Input and Output Bit Rate ≤ 216 Mb/s
  •  Support T2-MI



P01EC (4 x HDMI in Encoder/Transcoder Module)

ANTIK Technology

  •  4 x HDMI, type A
  •  Coding Profile & Level: H.264/AVC BLP, MP, HP @ L4.0 or less & MPEG-2 MP@ML
  •  Sampling Format: 4:2:0
  •  Video Resolution & Recommend Compression Bit Rate H.264:
    •  1080i (1920 x 1080) @ 25 Hz, 29,97 Hz, 30 HZ: SMPTE274M:1 ~ 13 Mb/s
    •  1080i (1440 x 1080) @ 25 Hz, 29,9 Hz: SMPTE274M: 5 ~ 24 Mb/s
    •  720p (1280 x 720) @ 59,97 Hz, 50 Hz: SMPTE296M: 1 ~ 13 Mb/s
    •  480i (720 x 480) @ 29,97 Hz: SMPTE656M: 600K ~ 10 Mb/s
    •  576i (720 x 576) @ 25 Hz: SMPTE656M: 600K ~ 10 Mb/s
  •  Video Resolution & Recommend Compression Bit Rate MPEG-2:
    •  480i (720 x 480) @ 29,97 Hz: SMPTE656M: 3M ~ 10Mb/s
    •  576i (720 x 576) @ 25 Hz: SMPTE656M: 3M ~ 10 Mb/s
  •  Vertical & Horizontal adjustable respectively (frame rate is not scalable)
  •  Aspect Ratio: 16:9, 4:3 selectable
  •  Audio Input: Embedded
  •  Cording Standard: MPEG1 Layer II, MPEG-2/4 AAC-LC, HE-AAC (V1, V2)
  •  Sampling Rate: 48 KHz
  •  Recommended Compression Bit Rate:
  •  MPEG1 Layer II: 32 ~ 192 Kbps (Mono), 64 ~ 384 Kbps (Stereo)
  •  MPEG2/4 AAc-LC: 24 ~ 256 Kbps (Mono), 48 ~ 512 Kbps (Stereo)
  •  MPEG2/4 HE-AAC (V1/V2): 16 ~ 128 Kbps (Mono), 32 ~ 256 kbps (Stereo)
  •  Transcode Mode H.264 to MPEG-2, H.264 to H.264, MPEG-2 to MPEG-2, MPEG-2 to H.264
  •  Input: MPTS/SPTS, MPEG2 MP@ML, MP@HL, MPTS/SPTS, H.264/AVC Main/High/Baseline Profile @ L4.0 or less (but not FMO, ASO & RS of Baseline)
  •  Output: MPTS and/or un-stuffed TS, MPEG2 MP@ML, MPTS and/or un-stuffed TS, H.264/AVC Main/High/Baseline Profile @ L4.0 or less (but not including FMO, ASO & RS of Baseline)



P02EC (4 x SDI In Encoder/Transcoder Module)

ANTIK Technology

  •  4 x SDI, BNC Type Female, 75Ω
  •  Coding Profile & Level: H.264/AVC BLP, MP, HP @ L4.0 or less @ MPEG-2 MP@ML
  •  Sampling Format: 4:2:0, 10-bit, QCbCr
  •  Video Resolution & Recommend Compression Bit Rate H.264:
    •  1080i (1920 x 1080) @ 25Hz, 29,97 Hz, 30 Hz: SMPTE274M: 1 ~ 13 Mb/s
    •  1080i (1440 x 1080) @ 25 Hz, 29,97 Hz: SMPTE274M: 5 ~ 24 Mb/s
    •  720p (1280 x 720) @ 59,94 Hz, 50 Hz: SMPTE296M: 1 ~ 13 Mb/s
    •  480i (720 x 480) @ 29,97 Hz: SMPTE656M: 600K ~ 10 Mb/s
    •  576i (720 x 576) @ 25 Hz: SMPTE656M: 3M ~ 10 Mb/s
  •  Video Resolution & Recommend Compression Bit Rate MPEG-2:
    •  480i (720 x 480) @ 29,97 Hz: SMPTE656M: 3M ~ 10 Mb/s
    •  576i (720 x 576) @ 25 Hz: SMPTE656M: 3M ~ 10 Mb/s
  •  Vertical & Horizontal adjustable respectively (frame rate is not scalable)
  •  Aspect Ratio: 16:9, 4:3 selectable
  •  Audio Input: SDI Embedded
  •  Coding Standard: MPEG1 Layer II, MPEG – 2/4 AAc-LC, HE-AAC (V1, V2)
  •  Sampling Rate: 48 kHz
  •  Recommend Compression Bit Rate:
    •  MPEG1 Layer II: 32 ~ 192 Kbps (Mono), 64 ~ 384 Kbps (Stereo)
    •  MPEG2/4 AAc-LC: 24 ~ 256 Kbps (Mono), 48 ~ 512 Kbps (Stereo)
    •  MPEG2/4 HE-AAC (V1/V2): 16 ~ 128 Kbps (Mono), 32 ~ 256 Kbps (Stereo)
  •  Second sound encoding: Support with optional extension board
  •  Transcode Mode: H.264 to MPEG-2, H.264 to H.264, MPEG-2 to MPEG-2, MPEG-2 to H.264
  •  Transcode Channels: 4/8 (Optional)
  •  Input: MPTS/SPTS, MPEG2 MP@ML MP@HL, MPTS/SPTS, H.264/AVC Main/High, Baseline Profile @ L4.0 or less (but not FMO, ASO & RS of Baseline)
  •  Output: MPTS and/or un-stuffed TS, MPEG2 MP@ML, MPTS and/or un-stuffed TS, H.264/AVC Main/High/Baseline Profile @ L4.0 or less (but not include FMO, ASO & RS of Baseline)



D01PA (2 x H.264/MPEG-2 Decoder Module)

ANTIK Technology

  •  2 x HDMI 1.3, 1 x D-sub 15 Female (2 pairs CVBS out adapter)
  •  Video Decode: MPEG-2 (MP@ML for SD, MP@HL for HD), MPEG 4/H.264 SVC Part 10 (MP@L3 for SD, HP@L4.1 for HD)
  •  Video Resolution: 1080i x 30, 1080i x 29,97, 1080i x 25, 720p x 60, 720p x 50, 576i x 25, 480i x 29,97
  •  Video Bit Rate < 50 Mb/s
  •  Aspect Ratio: 16:9, 4:3 selectable
  •  SD SDI standard: SMPTE259M, 270 Mb/s (10 bit)
  •  HD SDI standard: SMPTE292M, 1,485 Gb/s (10 bit)
  •  Sampling Rate: 32 KHz, 44,1 KHz, 48 KHz
  •  Audio format: MPEG Layer1/2, AAC-LC, HE-AAC V1/V2
  •  Analog Video Output: CVBS, 2 x RCA, (DB15 adapter)
  •  CVBS Standard: NTSC, PAL, SECAM
  •  CVBS Resolution: 576i x 25, 480i x 29,97
  •  Output level: 1.0 Vp-p ± 5 % (with standard test stream)
  •  Frequency Response <± 1 dB, 5,5 MHz (PAL, SECAM), 4,2 MHz (NTSC)
  •  Chroma-Luma Delay <± 30 ns
  •  Field Time Distortion < 2 %
  •  Line Time Distortion < 1 %
  •  Short Time Distortion < 2 %
  •  Differential Gain < 3 %
  •  Differential Phase < 2 %
  •  S/N > 55 dB
  •  Analog Audio Output: 4 x RCA, 2 x Group L+R, (DB15 adapter)
  •  Output Impedance: 600Ω (Balanced)
  •  Output Mode: Left, Right, Mono, Stereo
  •  Audio Decoding: 2 pairs Stereo (2 groups of audios PID or 4 sound channels)
  •  Cross Talk > 70 dB
  •  THD < 0,3 % @ 400 Hz, 1 KHz test done
  •  Frequency Response ± 0,5 dB (20 Hz ~ 18 KHz)
  •  Output Level: -30 ~ + 7 dB (Adjustable, 0 dBm/600Ω)
  •  Subtitle: DVB, EBU
  •  VBI: Teletext, WSS
  •  Closed Caption: EIA 608, EIA 708



D02PA (2 x H.264/MPEG-2 Decoder Module)

ANTIK Technology

  •  2 x DSI outputs, 1 x Genlock input, BNC Female 75Ω, 2 x CVBS outputs by D-sub 15 to RCA convertor
  •  Video Decode: MPEG-2 (MP@ML for SD, MP@HL for HD), MPEG 4/H.264 AVC Part 10 (MP@L3 for SD, HP@L4.1 for HD)
  •  Video Resolution: 1080i x 30, 1080i x 29,97, 1080i x 25, 720p x 60, 720p x 59,97, 720p x 50, 576i x 25, 480i x 29,97
  •  Video Bit Rate < 50 Mb/s
  •  SD SDI standard: SMPTE259M, 270 Mb/s (10 bit)
  •  HD SDI standard: SMPTE292M, 1,485 Gb/s (10 bit)
  •  SDI Embedded Audio: Support 8 x PID or pass through
  •  Sampling Rate: 32 KHz, 44.1 KHz, 48 KHz
  •  Audio Format: MPEG Layer1/2, Dolby Digital (AC3), Dolby Digital Plus (AC3+), AAC-LC, HE-AAC v1/v2
  •  Analog Video Output: CVBS, 2 x RCA, (DB15 adapter)
  •  CVBS Standard: NTSC, PAL, SECAM
  •  CVBS Resolution: 576i x 25, 480i x 29,97
  •  Output Level: 1.0 Vp-p ± 5 % (with standard test stream)
  •  Frequency Response <± 1 dB, 5.5 MHz (PAL, SECAM), 4,2 MHz (NTSC)
  •  Chroma-Luma Delay <± 30 ns
  •  Field Time Distortion < 2 %
  •  Line Time Distortion < 1 %
  •  Short Time Distortion < 2 %
  •  Differential Gain < 3 %
  •  Differential Phase < 2
  •  S/N > 55 dB
  •  Analog Audio Output: 4 x RCA, 2 x Group L+R, (DB15 adapter)
  •  Output Impedance: 600 (Balanced)Ω
  •  Output Mode: Left, Right, Mono, Stereo
  •  Audio Decoding: 2 pairsStereo (2 goups of audios PID or 4 sound channels)
  •  Cross Talk > 70 dB
  •  THD < 0,3 % @400 Hz, 1 KHz test done
  •  Frequency Response: ± 0,5 dB (20 Hz ~ 18 KHz)
  •  Output Level: – 30 ~ + 7 dB (Adjustable, 0 dBm/600x)
  •  Subtitle: DVB, EBU
  •  VBI: Teletext, WSS
  •  Closed Caption: EIA 608, EIA 708
  •  Genlock: Support
  •  BNC Output Mode: SDI Output/ASI Input/ASI Output can be switched by Web Control



P01AT (4-Way HD/SD H.265 to H.264/MPEG-2 Transcoding Module)

ANTIK Technology

  •  H.265 HD/SD to H.264, H.265 HD/DS to MPEG-2 SD, H.264 to MPEG-2 SD, H.264 to H.264, MPEG-2 to MPEG-2 SD, MPEG-2 to H.264
  •  Input: Compliant with H.265 /HEVC), H.264/AVC Baseline, Main & High Profile @ L4.0 or less & MPEG-2 MP@ML
  •  Coding standard: MPEG-1 Lyer II, MPEG-2/4, AAC-LC/HEAAC, support Dolby AC3 Passthough
  •  Video Resolution & Recommend Compression Bit Rate H.264:
    •  1080i (1920 x 1080) @ 25Hz, 29.97 Hz: SMPTE274M: 1 ~ 13 Mb/s
    •  1080i (1440 x 1080) @ 25 Hz, 29.97 Hz: SMPTE274M: 5 ~ 24 Mb/s
    •  720p (1280 x 720) @ 50 Hz, 59.94 Hz, SMPTE296M: 1 ~13 Mb/s
    •  480i (720 x 480) @ 29,97 Hz: SMPTE656M: 600K ~ 10 Mb/s
    •  576i (720 x 576) @ 25 Hz: SMPTE656M: 600K ~10 Mb/s
  •  Video Resolution & Recommend Compression Bit Rate MPEG-2:
    •  480i (720 x 480) @ 29,97 Hz: SMPTE656M: 3M ~ 10 Mb/s
    •  576i (720 x 576) @ 25 Hz: SMPTE656M: 3M ~ 10 Mb/s
  •  Aspect Ratio: 16″9, 4″3 selectable
  •  Output: MPTS and/or un-stuffed TS, MPEG2 MP@ML, MPTS and/or un-stuffed TS, H.264/AVC Main/High/Baseline Profile @ L4.0 or less (but not include FMO, ASO & RS of Baseline)



Technical specifications:

Inputs/Outputs

TS/IP Connector Type- 2 x SFP, 1000 Base-T
CA Connector Type- 1 x RJ-45, 10/100/1000 Base-T
Control Connector Type- 1 x RJ-45, 10/100/1000 Base-T
Upgrade Connector Type- 1 x USB
Debug Connector Type- 2x Mini USB
Display- 2 x 20 characters LCD Display
6 Module slots

Audio Processing

MPEG2 LI, LII
MPEG2 AAC-LC-Stereo
Dolby AC-3 True HD, 7.1, 5.1, Stereo
MPEG1, L1, L2, MP3, AAC, Dolby AC-3 True HD 7.1, 5.1

Interfaces

2x RJ45 10/100/1000 Mbit
2x USB 2.0 for 2x Slave transcoder unit

Operating Conditions

Power Supply AC 100 – 250 V 100W & 300W
Operating Temperature 0- 45 °C
Storage Temperature -10 – 60°C
Operation Humidity10-90%, (Non-condensed)



Antik EN-8000 Encoder

4/8-way Integrated Encoder

ANTIK Technology

EN-8000 consists of two 4-way (total 8) H.264/MPEG-2 encoder modules, TS reMultiplexer. Al encoders are real time and independent operated. Each encoder accepts one stereo program through its HDMI (HD or SD) input, or CVBS (SD) Input. These programs encoded are muliplexed onto one Transport Stream (TS). The essential PSI/SI tables of the TS, including LCN (Logical Channel Number), are generated automatically and are editable by user. This TS stream is also available through the TS/IP port on the front panel with 3 modes: Full Duplex, 128 IPTV & 32 IPTV with 2 RJ-45 port. En-8000 is accommodated in a standard 1U x 19º rack mountable chassis.

KEY FEATURES

  •  Compliant with H.264/AVC HP@L4.0 & MPEG-2 MP@ML
  •  Support MPTS & SPTS, Re-multiplexed integrated
  •  Total bitrate up to 400 Mb/s at 128 IPTV Mode
  •  Total bitrate up to 200 Mb/s at 32 IPTV Mode with both RJ-45 port
  •  Total bitrate up to 80 Mb/s at Full Duplex Mode
  •  HD/SD Video Resolution: 1080i, 720p, 576i, 480i
  •  MPEG1-L2, MPEG-2/4 AAC-LC/HE-AAC Audio Encode
  •  Remote control/monitoring with SNMP and HTTP/Web interface
  •  Two Redundant Power Supplies



Order information

ANTIK Technology

Block Diagram

ANTIK Technology

Specification

ANTIK Technology

Back Panel Interface

ANTIK Technology


WhatsApp chat
